Product Description
|
Number of channels |
4 channels |
Sensor |
K-type thermocouple |
Accuracy |
0.5% |
|
Usage time |
Can be used at temperatures up to 300°C for 1 hour, 150°C for 2 hours, or 100°C for 4 hours |
||||
|
Memory |
Each channel can record and store 16,000 data |
||||
|
Sampling rate |
1s, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, 1min, etc., can be selected by the user |
||||
|
Computer requirements |
Windows 98, 2000, XP, etc., can print out the temperature curve through the computer |
||||
|
Setting up the software |
a) Sampling period is optional b) Convenient start/stop recording c) Real-time display of temperature curve d) Multiple sets of data can be saved |
Analyzing Software |
a) Each curve can be displayed or not b) The heating rate between any two temperatures can be calculated c) The time above a certain 4 temperatures can be calculated d) The peak temperature can be calculated e) 2-5 test data can be compared |
||
|
Incubator size |
110×125×300mm |
||||
|
Standard configuration |

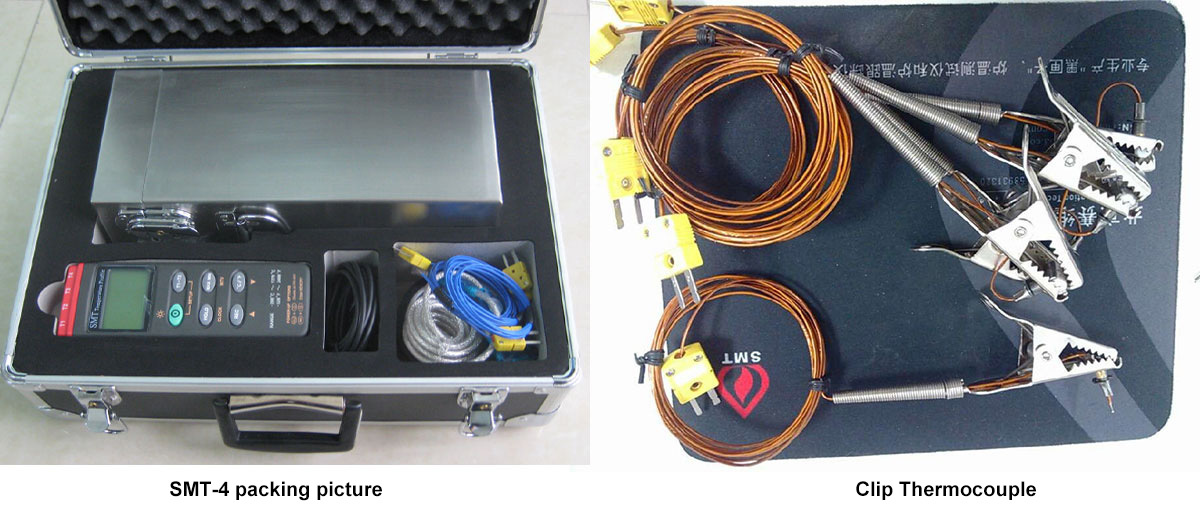

• Four-channel oven temperature tracker SMT Temperature Profile • 4 1.75m temperature sensors; can be customized as required. • Computer connection cable • Setup software, data analysis software • Incubator • Operation manual |
||||
With many measuring points and good software, it completely eliminates the trouble of dragging the temperature measurement.
